C100 Stepping grate and de-ashing

C100 Stepping grate and de-ashing

stepping grate and de-ashing C100

30025

HDG30025 Plain bearing bush 1B
Part No HDG30025

View

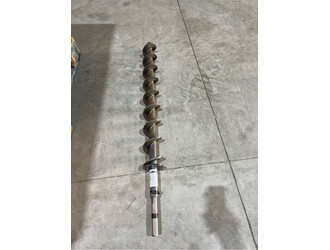

30505

HDG30505 Ash auger flue ash
Part No HDG30505

View

30508

HDG30508 Ash auger comb.chamber 8B
Part No HDG30508

View

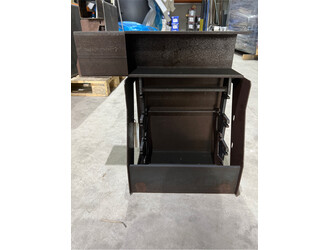

30555

HDG30555 Stepping grate cpl. + ash door
Part No HDG30555

View

30556

HDG30556 Stepping grate cpl. + ash door
Part No HDG30556

View

30559

HDG30559 Stepping grate chassis cpl. left 5A
Part No HDG30559

View

30560

HDG30560 Stepping grate chassis cpl. right 5A
Part No HDG30560

View

30563

HDG30563 Guide bar 37G3
Part No HDG30563

View

30565

HDG30565 Stepped grate elements standard
Part No HDG30565

View

30567

HDG30567 Stepping grate elements high temp
Part No HDG30567

View

30571

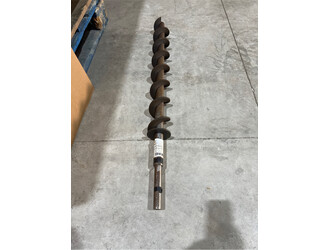

HDG30571 Ash auger cc
Part No HDG30571

View

30573

HDG30573 Ash auger flue ash
Part No HDG30573

View

30575

HDG30575 Rep.kit de-ashing
Part No HDG30575

View

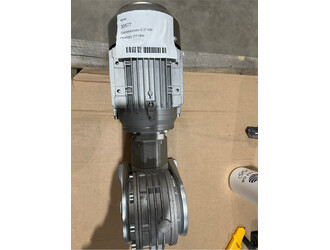

30577

HDG30577 Geared motor 0,37 kW 3B
Part No HDG30577

View

30583

HDG30583 Grate flag with drive
Part No HDG30583

View

30585

HDG30585 Grate flag C100
Part No HDG30585

View

30587

HDG30587 Grate drive bar
Part No HDG30587

View

30715

HDG30715 Comb welded welded
Part No HDG30715

View

30724

HDG30724 Insulation board for floor
Part No HDG30724

View

30729

HDG30729 Sheet metal insert cpl.
Part No HDG30729

View

30876

HDG30876 Motor gearbox ash removal 0.55kW
Part No HDG30876

View

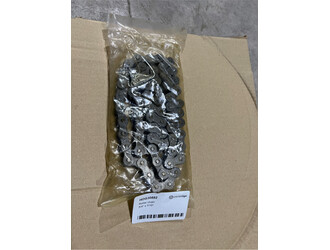

30882

HDG30882 Roller chain 33E4
Part No HDG30882

View

30930

HDG30930 Motor bracket complete
Part No HDG30930

View

32554

HDG32554 Connecting link 36F10
Part No HDG32554

View

Similar Spare Part Diagrams

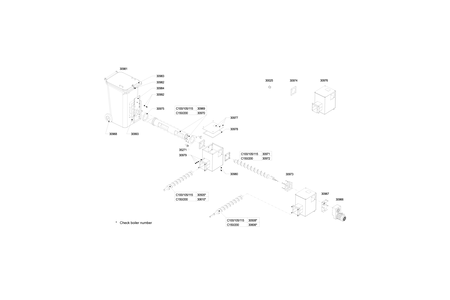

Ash removal system C100 Centralized Ash Removal

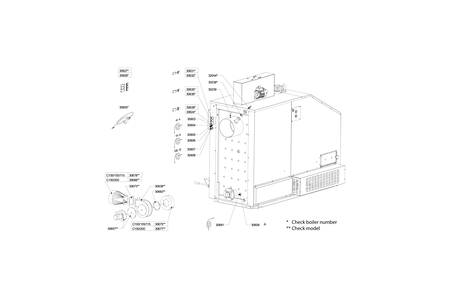

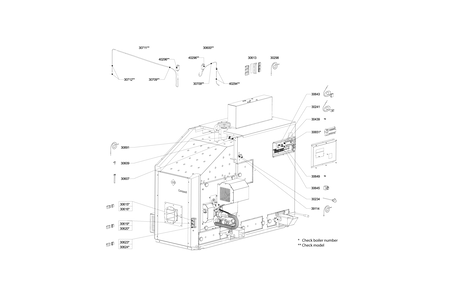

electrical C100 Electrical parts front
electrical C100 Electrical parts rear

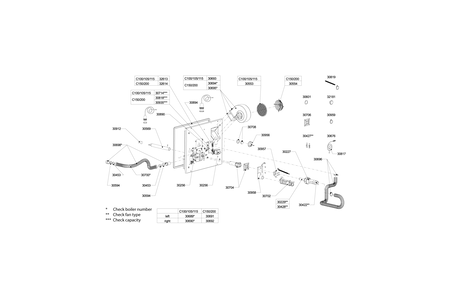

Front lid C100 Front Access Panel
Combustion chamber C100 Combustion chamber Bricks

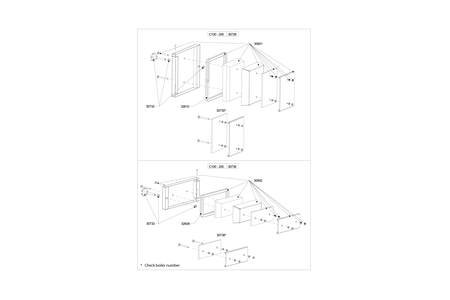

Inspection door Combust chamber door C100 Inspection doors
Auto cleaning system C100 Flue way cleaning system
stepping grate and de-ashing C100 C100 Stepping grate and de-ashing
Control cabinet exterior C100 Control Cabinet Externals
cladding C100 External Cladding Front
cladding C100 External Cladding Rear
cyclone dust separator C100 Cyclone dust separator
Accessories C100 Accessories & tools
de-ashing doors C100 De-ashing doors combustion chamber side Page 2
de-ashing doors C100 De-ashing doors combustion chamber Page 1
de-ashing doors C100 De-ashing doors heat exchange side

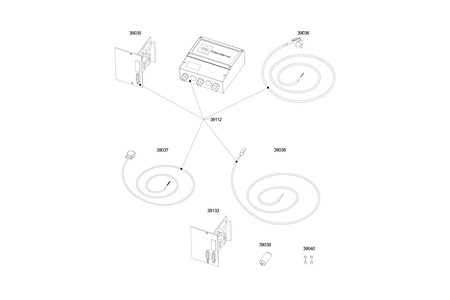

Web server C100 Webserver
