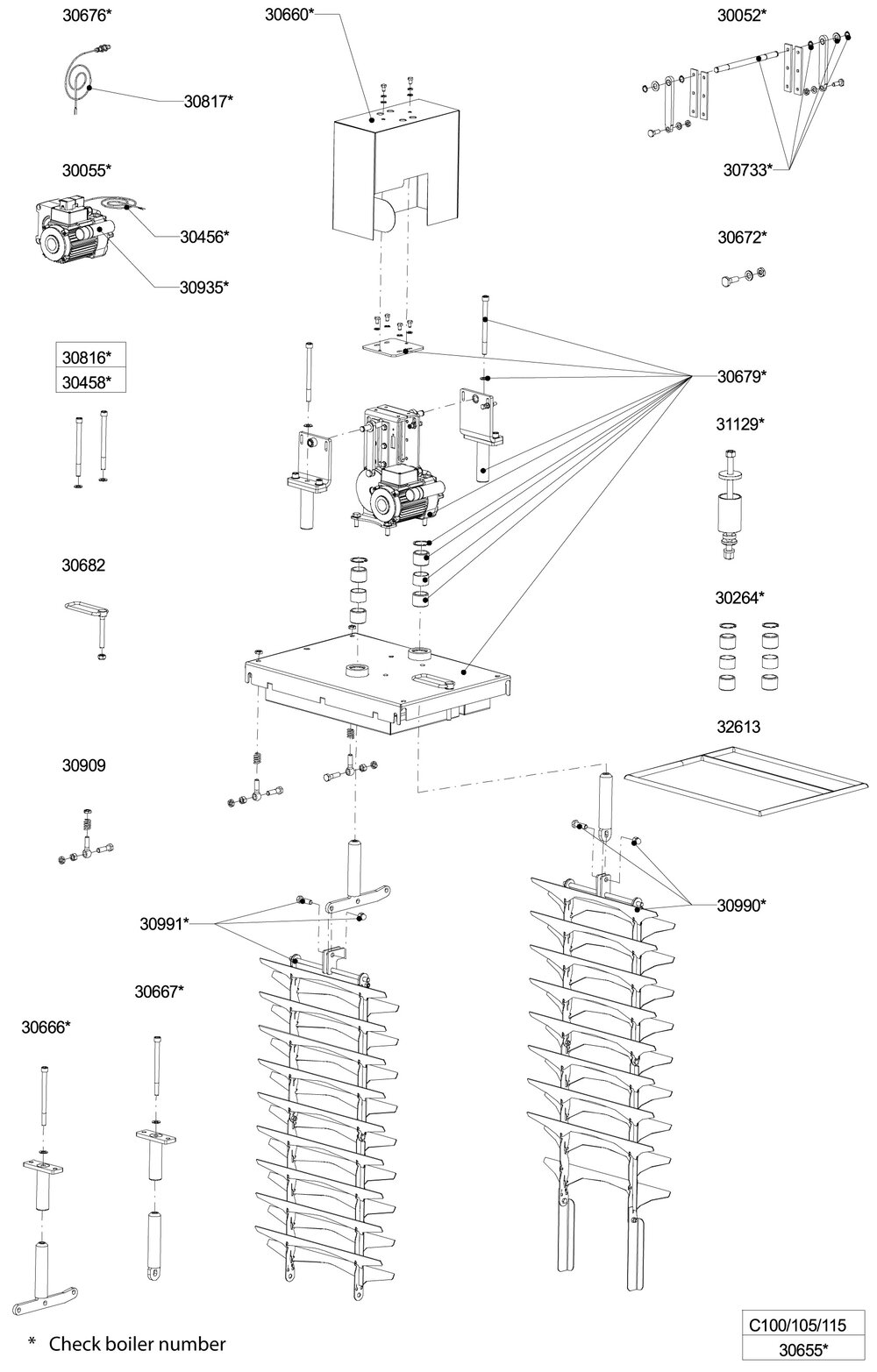

C100 Flue way cleaning system

Automatic flue way cleaning system

Auto cleaning system

30052

HDG30052 Rep.kit clean. syst. mechanism 32A7
Part No HDG30052

View

30055

HDG30055 Motor gearbox 0.05kW cleaning system 4B
Part No HDG30055

View

30456

HDG30456 Cable drive motor
Part No HDG30456

View

30458

HDG30458 Rep.kit screws
Part No HDG30458

View

30655

HDG30655 Automatic cleaning system cpl.
Part No HDG30655

View

30660

HDG30660 Cover cleaning system motor
Part No HDG30660

View

30666

HDG30666 Crossbeam long 43G5
Part No HDG30666

View

30667

HDG30667 Crossbeam short cpl.
Part No HDG30667

View

30672

HDG30672 Shear pin 36F11
Part No HDG30672

View

30676

HDG30676 Proximity switch inductive 41E1
Part No HDG30676

View

30679

HDG30679 Cleaning shaft lid cpl.
Part No HDG30679

View

30682

HDG30682 Bow-type handle 35D8
Part No HDG30682

View

30733

HDG30733 Cleaning Sliding shaft Kit
Part No HDG30733

View

30816

HDG30816 Rep.kit screws
Part No HDG30816

View

30817

HDG30817 Cable box
Part No HDG30817

View

30909

HDG30909 Rep.kit lid hinge
Part No HDG30909

View

30935

HDG30935 Capacitor 8mF
Part No HDG30935

View

30990

HDG30990 Turbulator wide movable 7B
Part No HDG30990

View

30991

HDG30991 Turbulator small movable
Part No HDG30991

View

32613

HDG32613 Gasket kit 22 mm / 3 m
Part No HDG32613

View
