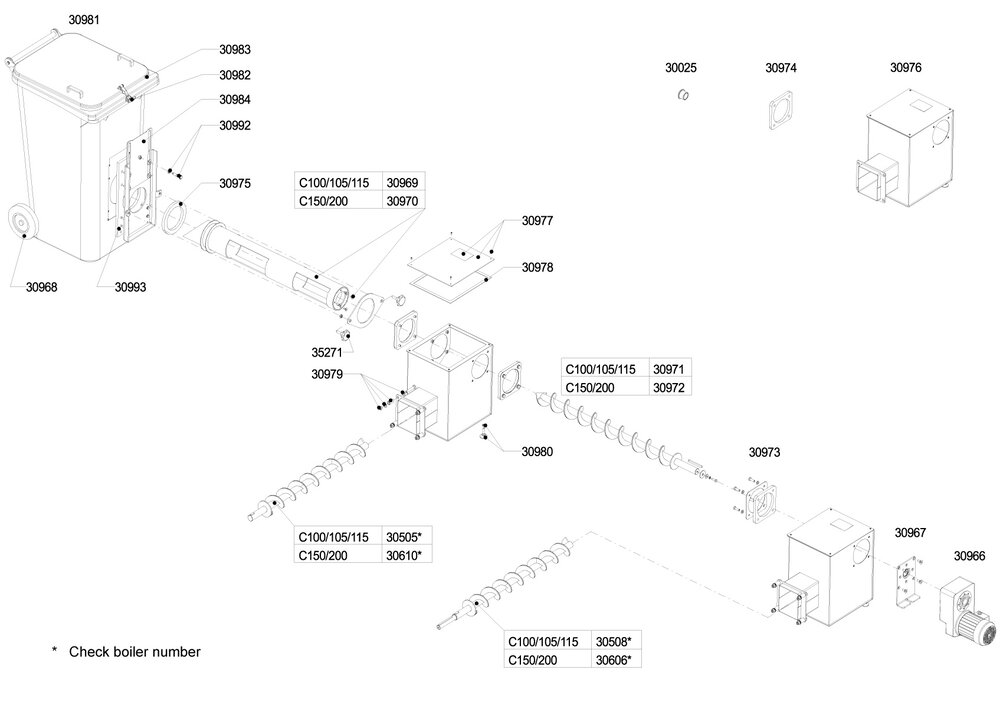

C100 Centralized Ash Removal

Automatic centralized ash removal system.

Ash removal system

30025

HDG30025 Plain bearing bush 1B
Part No HDG30025

View

30505

HDG30505 Ash auger flue ash
Part No HDG30505

View

30508

HDG30508 Ash auger comb.chamber 8B
Part No HDG30508

View

30966

HDG30966 Motor Gearbox 0.75kW 3 Phase 4B
Part No HDG30966

View

30967

HDG30967 Torque support
Part No HDG30967

View

30968

HDG30968 Wheel
Part No HDG30968

View

30969

HDG30969 Auger tube cpl.
Part No HDG30969

View

30971

HDG30971 Ash auger cpl.
Part No HDG30971

View

30973

HDG30973 Gasket auger tube cpl.
Part No HDG30973

View

30974

HDG30974 Gasket ring
Part No HDG30974

View

30975

HDG30975 Gasket auger end
Part No HDG30975

View

30976

HDG30976 Ash container cpl.
Part No HDG30976

View

30977

HDG30977 Ash container lid cpl.
Part No HDG30977

View

30978

HDG30978 Gasket kit
Part No HDG30978

View

30979

HDG30979 Mounting set
Part No HDG30979

View

30980

HDG30980 Gauge foot
Part No HDG30980

View

30981

HDG30981 Ash container
Part No HDG30981

View

30982

HDG30982 Lock
Part No HDG30982

View

30983

HDG30983 Protection profile
Part No HDG30983

View

30984

HDG30984 Feeder
Part No HDG30984

View

30992

HDG30992 Locking pin
Part No HDG30992

View

30993

HDG30993 Gasket
Part No HDG30993

View

35271

HDG35271 Star-grip screw
Part No HDG35271

View
