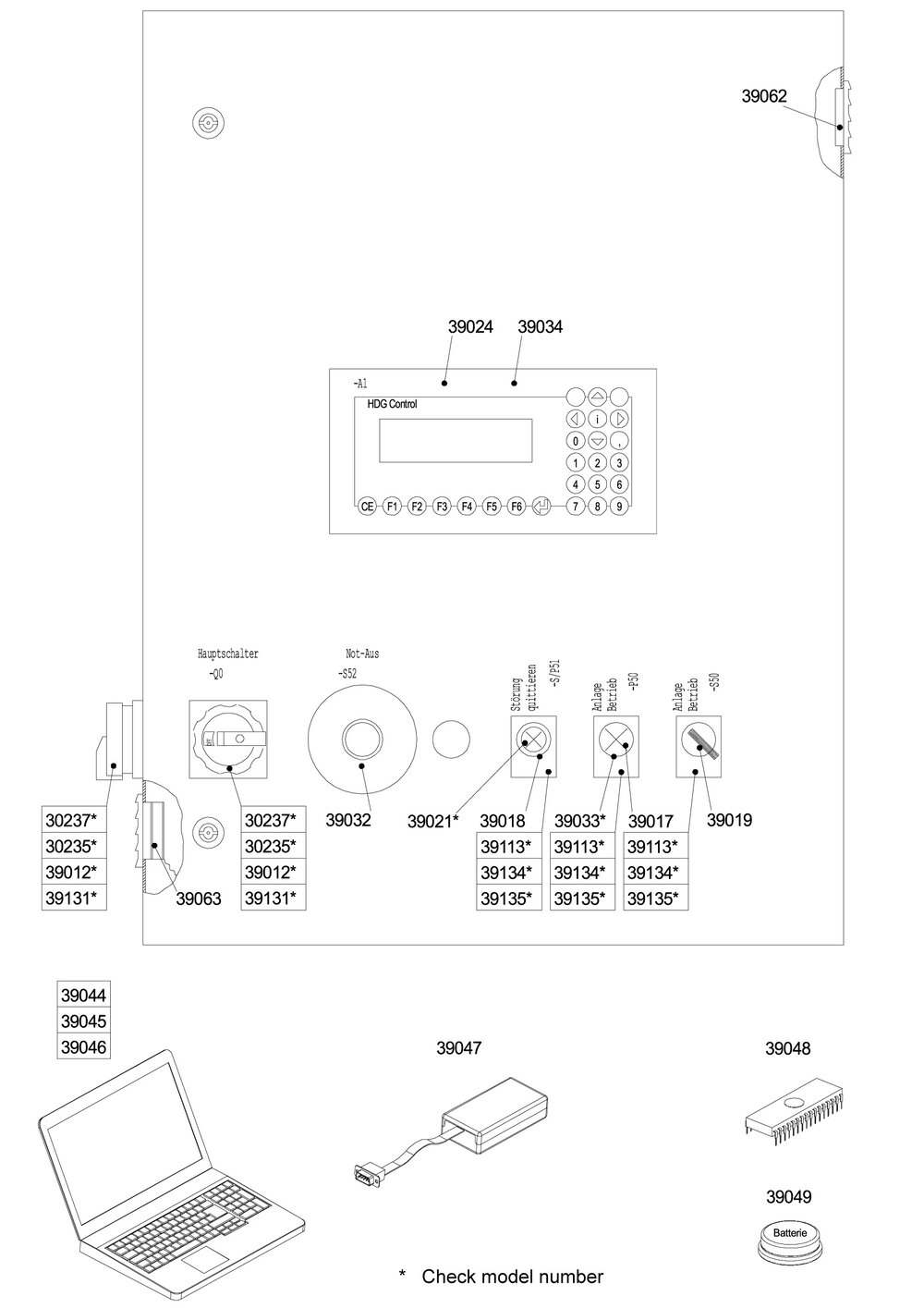

C100 Control Cabinet Externals

C100-C200 main control interface external equioment

Control cabinet exterior

30235

HDG30235 Main switch
Part No HDG30235

View

30237

HDG30237 Main switch
Part No HDG30237

View

39012

HDG39012 Main switch 3-pole
Part No HDG39012

View

39017

HDG39017 Signal lamp green 36C2
Part No HDG39017

View

39018

HDG39018 Luminous push-button
Part No HDG39018

View

39019

HDG39019 Switch run-off 36B1
Part No HDG39019

View

39021

HDG39021 LED red
Part No HDG39021

View

39024

HDG39024 EPIS controller
Part No HDG39024

View

39032

HDG39032 Emergency Stop switch
Part No HDG39032

View

39033

HDG39033 LED green
Part No HDG39033

View

39034

HDG39034 SPS controller incl. software
Part No HDG39034

View

39044

HDG39044 Program adaption EPIS
Part No HDG39044

View

39045

HDG39045 Program adaption EPIS
Part No HDG39045

View

39046

HDG39046 Program adaption EPIS
Part No HDG39046

View

39047

HDG39047 Update module
Part No HDG39047

View

39048

HDG39048 Eprom C-MOS
Part No HDG39048

View

39049

HDG39049 Battery button cell
Part No HDG39049

View

39062

HDG39062 Exhaust filter
Part No HDG39062

View

39063

HDG39063 cabinet fan
Part No HDG39063

View

39131

HDG39131 Main switch 3-pole
Part No HDG39131

View
