C100 Electrical parts rear

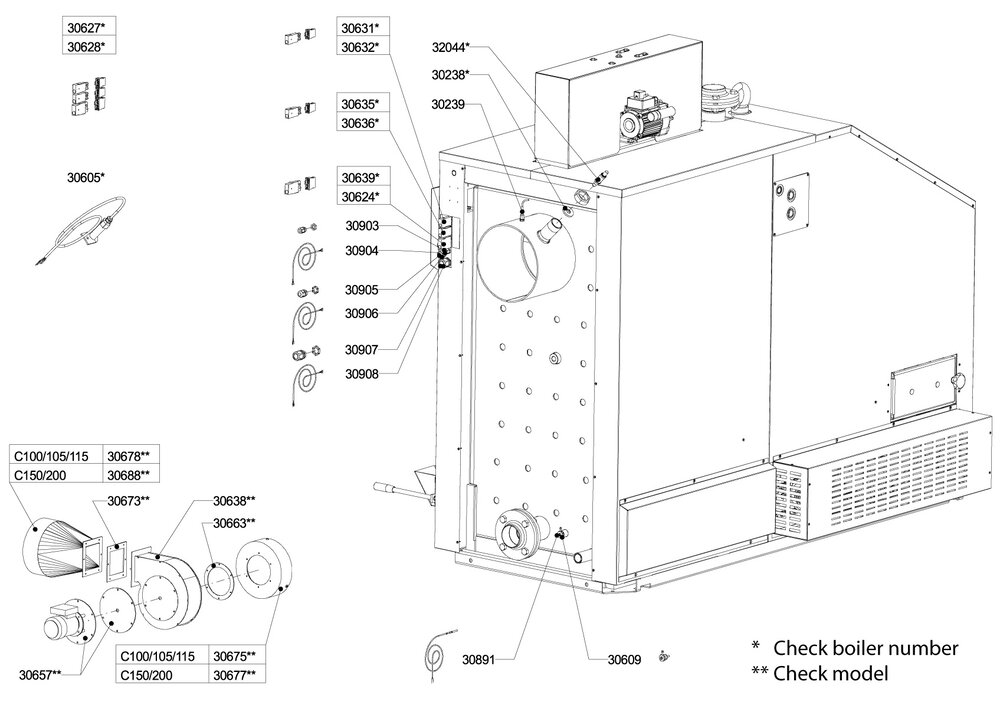

C100 Electrical parts boiler rear

electrical

32044

HDG32044 Lambda sensor HDG 36A4
Part No HDG32044

View

30238

HDG30238 Insulating washer 36A1
Part No HDG30238

View

30239

HDG30239 Flue gas temperature sensor
Part No HDG30239

View

30605

HDG30605 HD sensor
Part No HDG30605

View

30609

HDG30609 Immersion sleeve 1/2"
Part No HDG30609

View

30624

HDG30624 Plug connection "Feeding" 35E3
Part No HDG30624

View

30627

HDG30627 Plug connection backside cpl.
Part No HDG30627

View

30628

HDG30628 Plug connection backside cpl.
Part No HDG30628

View

30631

HDG30631 Plug connection "Water defic."
Part No HDG30631

View

30632

HDG30632 Plug connection "Water defic."
Part No HDG30632

View

30635

HDG30635 Plug connection "Primary pump"
Part No HDG30635

View

30636

HDG30636 Plug connection "Primary pump"
Part No HDG30636

View

30638

HDG30638 Fan Chimney assist C100 -C200
Part No HDG30638

View

30657

HDG30657 Drive flue gas fan 4D
Part No HDG30657

View

30663

HDG30663 Gasket flue gas fan TX100
Part No HDG30663

View

30673

HDG30673 Gasket flue gas fan TX100 42E5
Part No HDG30673

View

30675

HDG30675 Fan inlet
Part No HDG30675

View

30677

HDG30677 Fan inlet
Part No HDG30677

View

30678

HDG30678 Fan outlet
Part No HDG30678

View

30688

HDG30688 Fan outlet
Part No HDG30688

View

30891

HDG30891 Temperature sensor PT100 38H9
Part No HDG30891

View

30903

HDG30903 Cable fitting M16
Part No HDG30903

View

30904

HDG30904 CAN-BUS cable
Part No HDG30904

View

30905

HDG30905 Cable fitting M20
Part No HDG30905

View

30906

HDG30906 Cable Ölflex 110
Part No HDG30906

View

30907

HDG30907 Cable fitting M25
Part No HDG30907

View

30908

HDG30908 Cable Ölflex 110
Part No HDG30908

View
