C150-200 Inspection doors

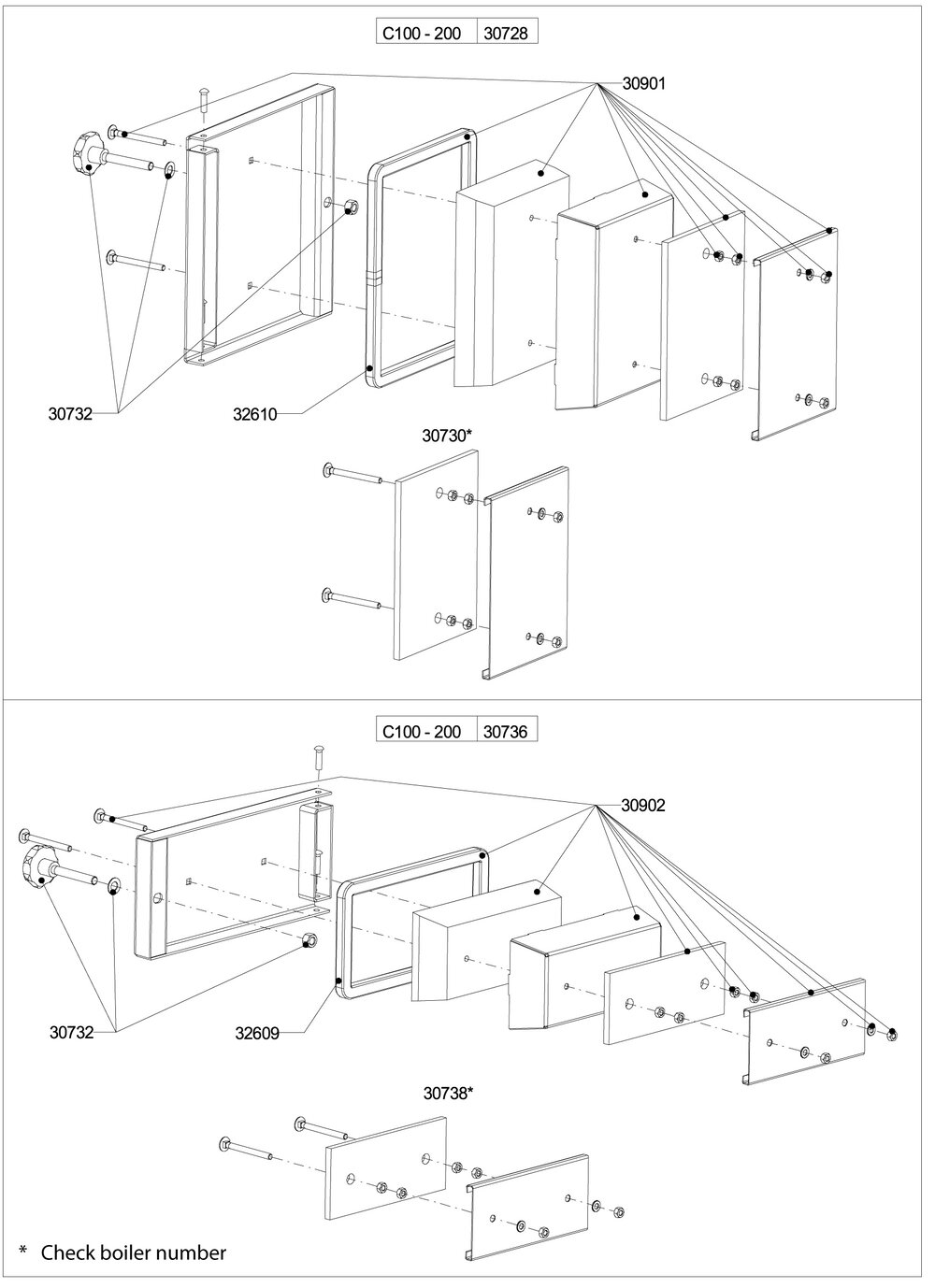

Inspection door Combust chamber door

HDG30728

30728 Inspection door flue ash cpl.
Part No HDG30728

View

HDG30730

30730 Heat protection flue ash door 32F3
Part No HDG30730

View

HDG30732

30732 Star-grip screw 35E4
Part No HDG30732

View

HDG30736

30736 Combustion chamber door cpl. 1B
Part No HDG30736

View

HDG30738

30738 Heat protection plate
Part No HDG30738

View

HDG30901

30901 Rep.kit flue ash door
Part No HDG30901

View

HDG30902

30902 Rep.kit comb. chamber door 1B
Part No HDG30902

View

HDG32609

32609 Gasket kit 22 mm / 1m
Part No HDG32609

View

HDG32610

32610 Gasket kit 22 mm / 1,5 m
Part No HDG32610

View
