C150-200 Automatic cleaning system

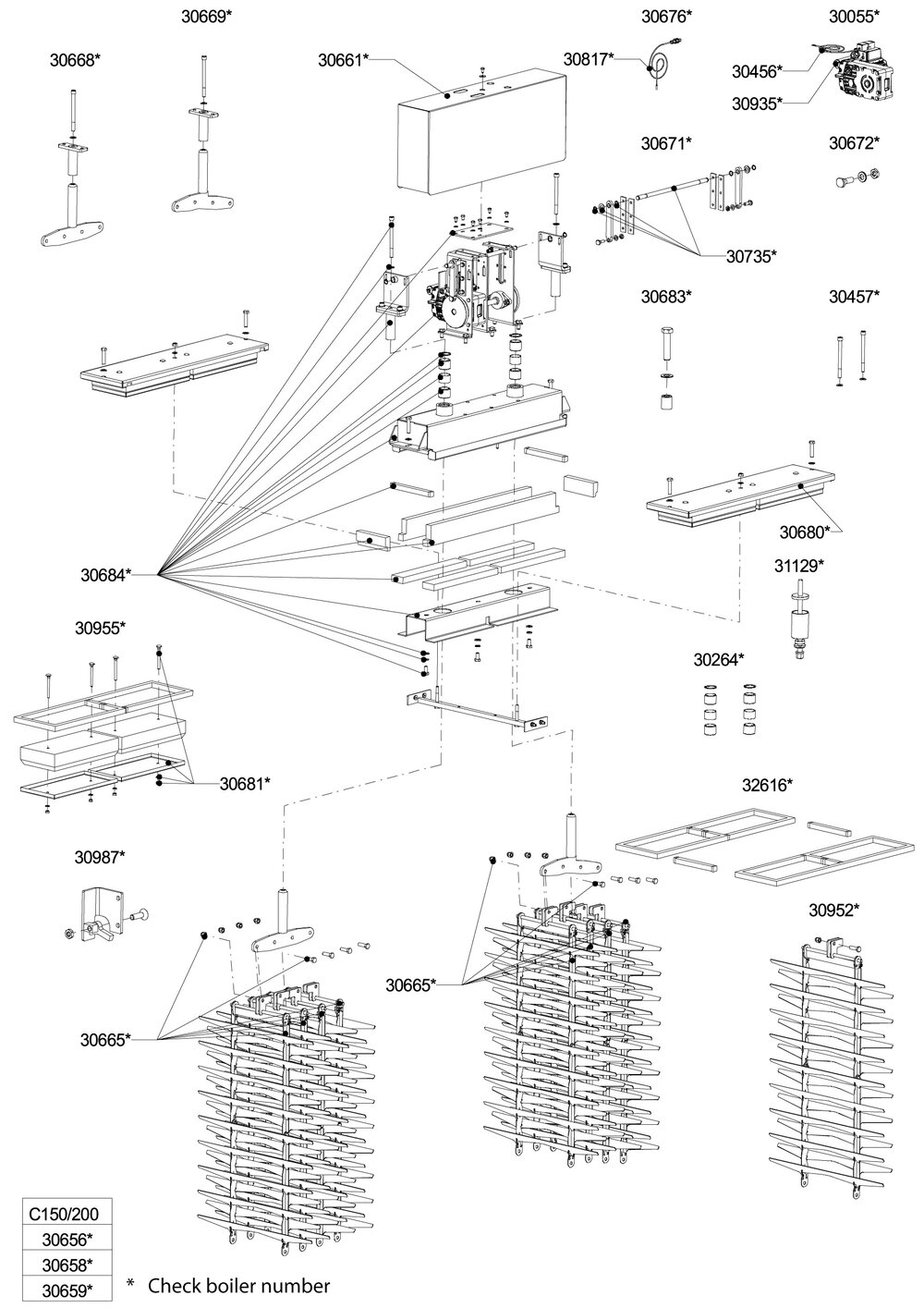

Compact 150-200 automatic flue way cleaning system

Auto cleaning system

30055

HDG30055 Motor gearbox 0.05kW cleaning system 4B
Part No HDG30055

View

30264

HDG30264 Rep.Satz lid cleaning 43F2
Part No HDG30264

View

30456

HDG30456 Cable drive motor
Part No HDG30456

View

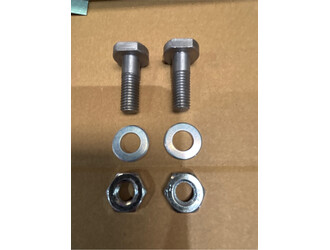

30457

HDG30457 Rep.kit screws
Part No HDG30457

View

30656

HDG30656 Automatic cleaning system cpl.
Part No HDG30656

View

30658

HDG30658 Automatic cleaning system cpl.
Part No HDG30658

View

30659

HDG30659 Automatic cleaning system cpl.
Part No HDG30659

View

30661

HDG30661 Cover cleaning system motor
Part No HDG30661

View

30665

HDG30665 Cleaning turbulators
Part No HDG30665

View

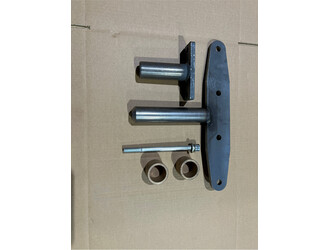

30668

HDG30668 Crossbeam feeding side
Part No HDG30668

View

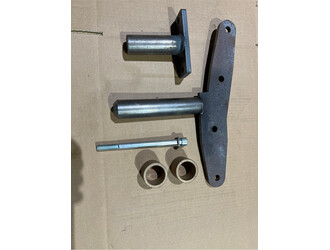

30669

HDG30669 Crossbeam flue gas side
Part No HDG30669

View

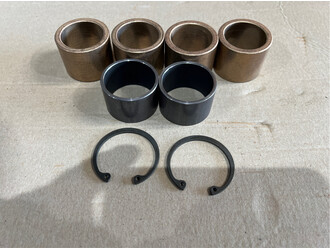

30671

HDG30671 Rep.kit clean. syst. mechanism 38A1
Part No HDG30671

View

30672

HDG30672 Shear pin 36F11
Part No HDG30672

View

30676

HDG30676 Proximity switch inductive 41E1
Part No HDG30676

View

30680

HDG30680 Cleaning shaft lid cpl.
Part No HDG30680

View

30681

HDG30681 Heat prot. cleaning shaft lid
Part No HDG30681

View

30683

HDG30683 Screw
Part No HDG30683

View

30684

HDG30684 Cleaning system + middle bar
Part No HDG30684

View

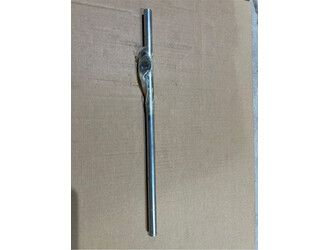

30735

HDG30735 Mounting Rod
Part No HDG30735

View

30817

HDG30817 Cable box
Part No HDG30817

View

30935

HDG30935 Capacitor 8mF
Part No HDG30935

View

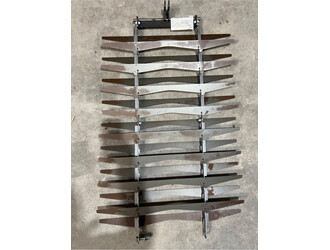

30952

HDG30952 Turbulator movable 2A
Part No HDG30952

View

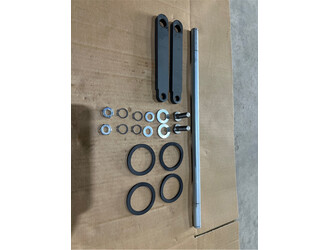

30955

HDG30955 Rep.kit cleaning shaft lid
Part No HDG30955

View

30987

HDG30987 Return stop add-on kit
Part No HDG30987

View

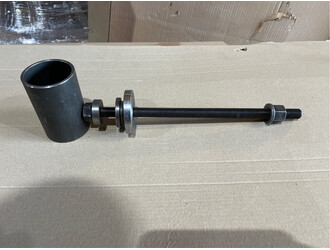

31129

HDG31129 Mounting tool
Part No HDG31129

View

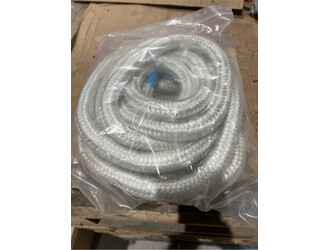

32616

HDG32616 Gasket kit 22 mm / 5 m
Part No HDG32616

View
