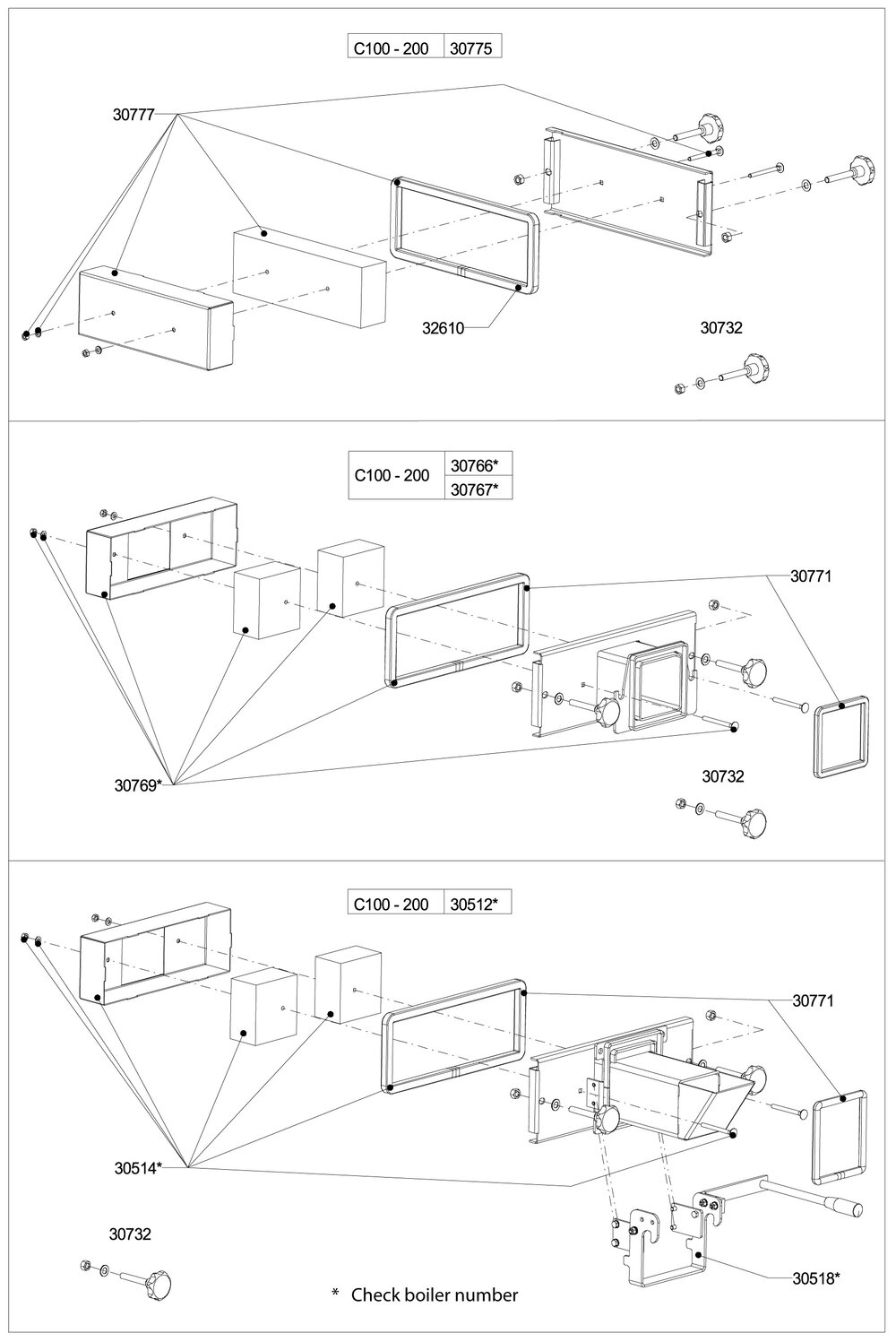

C150-200 De-ashing doors heat exchange side C100-200

Lower inspection doors heat exchanger side of boiler

de-ashing doors

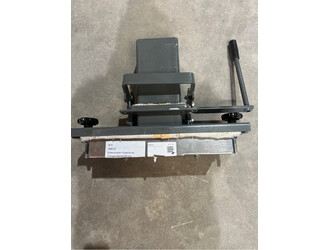

30512

HDG30512 Flue ash door cpl. 1B
Part No HDG30512

View

30514

HDG30514 Rep.kit de-ash. door flue ash 42E3
Part No HDG30514

View

30518

HDG30518 Rep.kit clamp handle de-ashing
Part No HDG30518

View

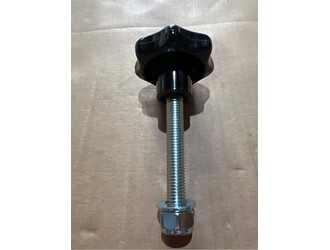

30732

HDG30732 Star-grip screw 35E4
Part No HDG30732

View

30766

HDG30766 Flue ash door incl. container
Part No HDG30766

View

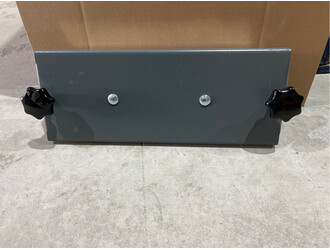

30767

HDG30767 Flue ash door
Part No HDG30767

View

30769

HDG30769 Rep.kit de-ash. door flue ash
Part No HDG30769

View

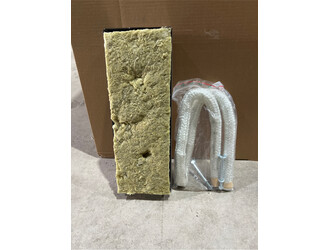

30771

HDG30771 Gasket kit flue ash door
Part No HDG30771

View

30775

HDG30775 Flue ash door + frame 7C
Part No HDG30775

View

30777

HDG30777 Rep.kit de-ash. door flue ash
Part No HDG30777

View

32610

HDG32610 Gasket kit 22 mm / 1,5 m
Part No HDG32610

View
