C150-200 De-Dusting Fan and Collector

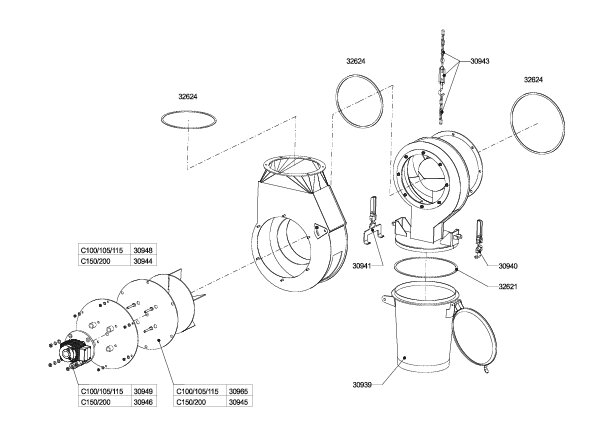

Older style chimney fan with de-dusting ash collection bucket

De ashing system

30939

HDG30939 ash container
Part No HDG30939

View

30940

HDG30940 Tension lever small
Part No HDG30940

View

30941

HDG30941 Tension lever big
Part No HDG30941

View

30943

HDG30943 Chain tensioning hook
Part No HDG30943

View

30944

HDG30944 Drive set complete
Part No HDG30944

View

30945

HDG30945 Seal R5
Part No HDG30945

View

30946

HDG30946 Drive motor fan
Part No HDG30946

View

30948

HDG30948 Drive set cpl.
Part No HDG30948

View

30949

HDG30949 Drive motor fan
Part No HDG30949

View

30965

HDG30965 Gasket R3
Part No HDG30965

View

32621

HDG32621 Gasket kit 20 mm / 2 m
Part No HDG32621

View

32624

HDG32624 Gasket kit 6 mm / 2 m 43F1
Part No HDG32624

View
