HDG F Filling Hatch and Combustion Chamber

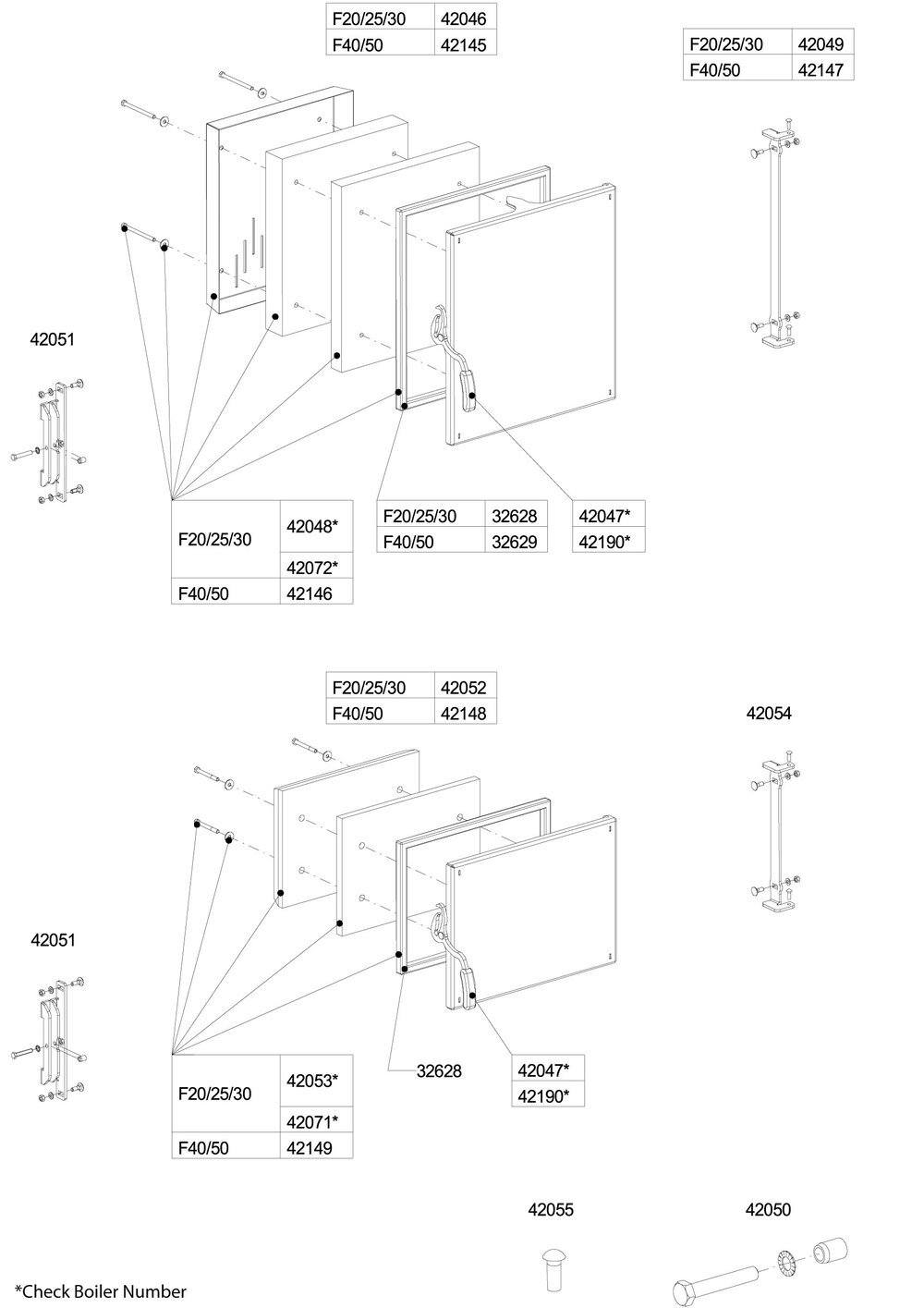

Filling Hatch and Combustion Chamber Door

32628

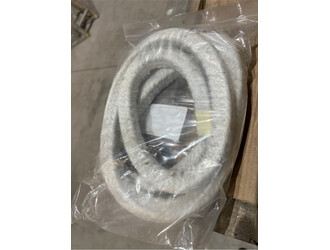

HDG32628 Gasket kit 20 mm
Part No HDG32628

View

32629

HDG32629 Gasket kit 20 mm
Part No HDG32629

View

42046

HDG42046 Filling shaft door cpl.
Part No HDG42046

View

42047

HDG42047 Rep. Set lock
Part No HDG42047

View

42049

HDG42049 Rep.set hinge filling door
Part No HDG42049

View

42050

HDG42050 Rep.Satz plug bolt cpl.
Part No HDG42050

View

42051

HDG42051 Rep.Satz closing plate cpl.
Part No HDG42051

View

42052

HDG42052 Combustor door cpl.
Part No HDG42052

View

42053

HDG42053 Rep.Satz insulation Brennerkammert.
Part No HDG42053

View

42054

HDG42054 Rep.Satz Scharn.Brennkammertür
Part No HDG42054

View

42055

HDG42055 Round head rivets
Part No HDG42055

View

42071

HDG42071 Rep.Satz insulation Brennerkammert.
Part No HDG42071

View

42072

HDG42072 Repair kit insulation filling door
Part No HDG42072

View

42145

HDG42145 Filling shaft door cpl.
Part No HDG42145

View

42146

HDG42146 Repair kit insulation filling door
Part No HDG42146

View

42147

HDG42147 Rep.set hinge filling door
Part No HDG42147

View

42148

HDG42148 Combustor door cpl.
Part No HDG42148

View

42149

HDG42149 Rep.Satz insulation Brennerkammert.
Part No HDG42149

View

42190

HDG42190 Rep. Set lock
Part No HDG42190

View
