HDG F Electrical Connection

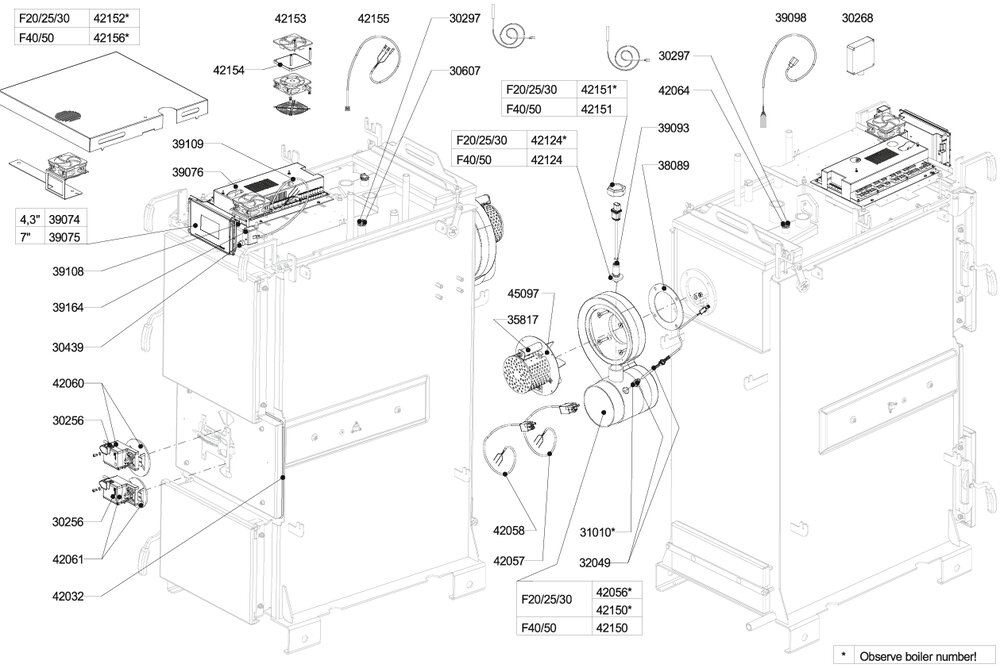

HDG F series electrical connection parts

Eletrical parts

30256

HDG30256 Actuator 33D3
Part No HDG30256

View

30268

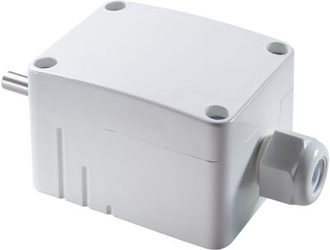

HDG30268 Outside temperature sensor
Part No HDG30268

View

30297

HDG30297 Sensor PT1000 36B2
Part No HDG30297

View

30439

HDG30439 Press button 43E7
Part No HDG30439

View

30607

HDG30607 Immersion sleeve 3 sensor DN15
Part No HDG30607

View

31010

HDG31010 Clamp screw con. temp. sensor
Part No HDG31010

View

32049

HDG32049 Exhaust gas temperature sensor cpl.
Part No HDG32049

View

35817

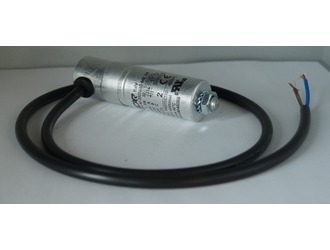

HDG35817 Capacitor 2 µF/420VDB
Part No HDG35817

View

38089

HDG38089 Gasket flue gas casing 42H3
Part No HDG38089

View

39074

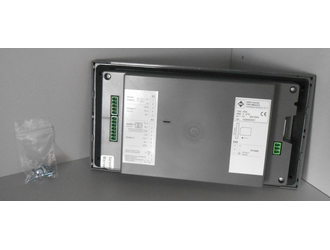

HDG39074 Control unit Control Touch
Part No HDG39074

View

39075

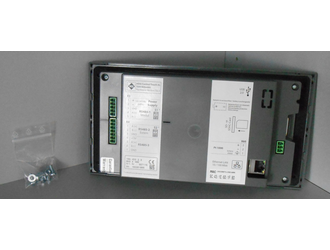

HDG39075 Control unit Touch XL
Part No HDG39075

View

39076

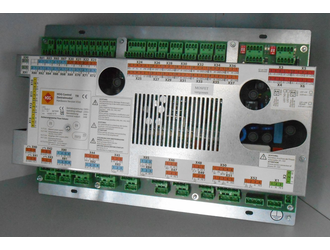

HDG39076 Central module
Part No HDG39076

View

39084

HDG39084 Plug set display 42C3
Part No HDG39084

View

39085

HDG39085 Plug set central module
Part No HDG39085

View

39089

HDG39089 Fuse T 2A
Part No HDG39089

View

39090

HDG39090 Fuse F 10A
Part No HDG39090

View

39091

HDG39091 Fuse T 1,6A
Part No HDG39091

View

39092

HDG39092 Fuse T 3,15A
Part No HDG39092

View

39093

HDG39093 Lambda sensor LSU 4.9
Part No HDG39093

View

39098

HDG39098 Cable lambda sensor
Part No HDG39098

View

39108

HDG39108 Cable display central module
Part No HDG39108

View

39109

HDG39109 Head of STB
Part No HDG39109

View

39164

HDG39164 Safety thermostat EM-80
Part No HDG39164

View

42032

HDG42032 Seal kit 15 x 4
Part No HDG42032

View

42056

HDG42056 Exhaust housing 150mm cpl.
Part No HDG42056

View

42057

HDG42057 Cable for induced draft fan
Part No HDG42057

View

42058

HDG42058 Cable for Hall sensor
Part No HDG42058

View

42060

HDG42060 Servomotor primary air cpl.
Part No HDG42060

View

42061

HDG42061 Actuator secondary air cpl.
Part No HDG42061

View

42064

HDG42064 Immersion sleeve 1-sensor DN 15
Part No HDG42064

View

42124

HDG42124 Disk to lambda probe
Part No HDG42124

View

42150

HDG42150 Exhaust housing 150mm cpl.
Part No HDG42150

View

42151

HDG42151 Union nut for
Part No HDG42151

View

42152

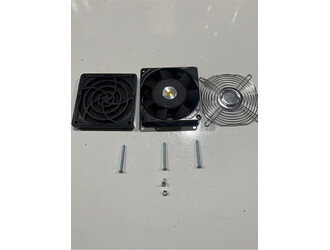

HDG42152 Retrofit kit fan
Part No HDG42152

View

42153

HDG42153 Fan complete 40C6
Part No HDG42153

View

42154

HDG42154 Filter for fans
Part No HDG42154

View

42155

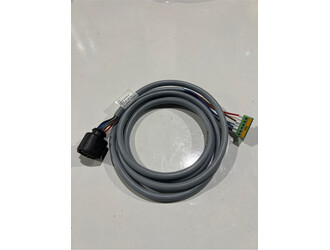

HDG42155 Connecting cable for fan
Part No HDG42155

View

42156

HDG42156 Retrofit kit fan
Part No HDG42156

View

45097

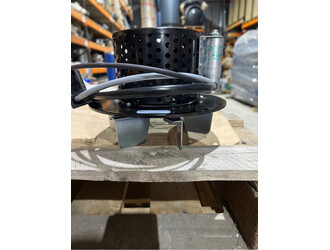

HDG45097 Suction fan cpl. 4D
Part No HDG45097

View
