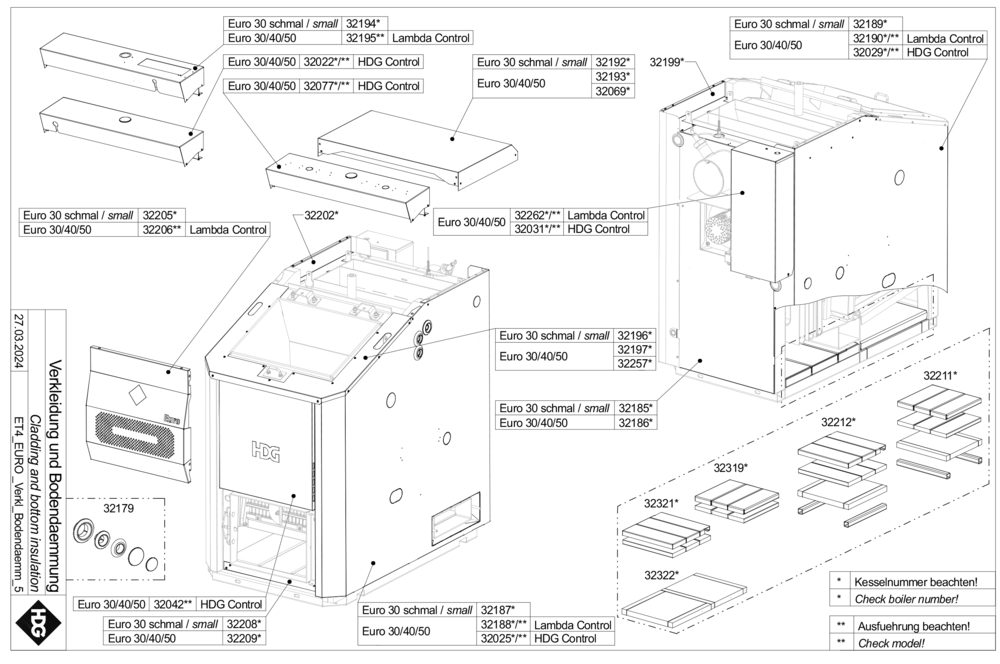

Euro V3 External Cladding

Panels and covers

32022

HDG32022 Reduction. top center complete
Part No HDG32022

View

32025

HDG32025 Rep.Satz Seitenverkleidung re.
Part No HDG32025

View

32029

HDG32029 Rep.Satz Seitenverkleidung li.
Part No HDG32029

View

32031

HDG32031 Cover circuit board
Part No HDG32031

View

32042

HDG32042 Panel air control unit
Part No HDG32042

View

32179

HDG32179 Rep.kit cover
Part No HDG32179

View

32186

HDG32186 Cladding backside
Part No HDG32186

View

32188

HDG32188 Rep.kit side cladding right
Part No HDG32188

View

32190

HDG32190 Rep.kit side cladding left
Part No HDG32190

View

32193

HDG32193 Top cladding backside cpl.
Part No HDG32193

View

32195

HDG32195 Control panel cpl.
Part No HDG32195

View

32197

HDG32197 Top cladding frontside
Part No HDG32197

View

32202

HDG32202 Cladding frame top left
Part No HDG32202

View

32206

HDG32206 Cladding air control unit
Part No HDG32206

View

32209

HDG32209 Cladding frontside bottom
Part No HDG32209

View

32211

HDG32211 Bottom insulation front cpl.
Part No HDG32211

View

32212

HDG32212 Bottom insulation back cpl.
Part No HDG32212

View

32257

HDG32257 Top cladding frontside
Part No HDG32257

View

32319

HDG32319 Bottom insulation front cpl.
Part No HDG32319

View

32321

HDG32321 Bottom insulation back cpl.
Part No HDG32321

View

32322

HDG32322 Bottom insulation below cpl.
Part No HDG32322

View
