Euro V3 Electrical Connections

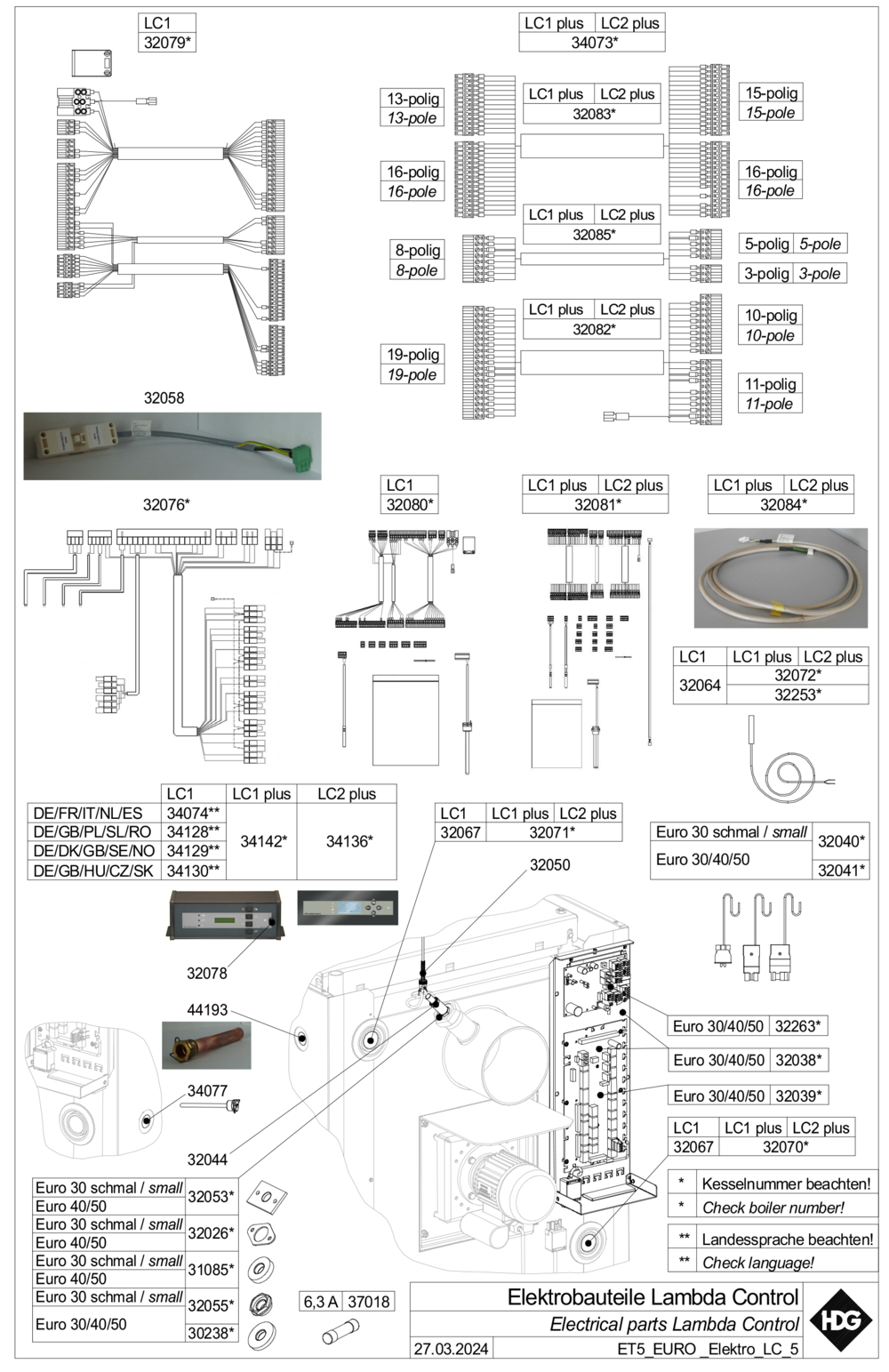

HDG Euro V3 log boiler input and output connections

30238

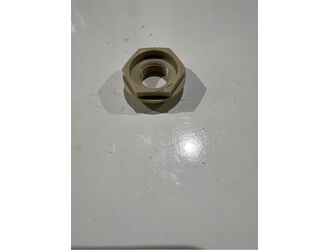

HDG30238 Insulating washer 36A1
Part No HDG30238

View

31085

HDG31085 Insulating washer
Part No HDG31085

View

32026

HDG32026 Gasket lambda sensor
Part No HDG32026

View

32038

HDG32038 Circuit board casing mounted
Part No HDG32038

View

32039

HDG32039 Circuit board Lambda-Control
Part No HDG32039

View

32040

HDG32040 Rep.kit plug connections old
Part No HDG32040

View

32041

HDG32041 Rep.kit plug connections new
Part No HDG32041

View

32044

HDG32044 Lambda sensor HDG 36A4
Part No HDG32044

View

32050

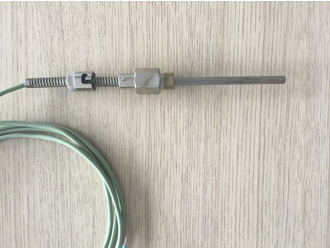

HDG32050 Flue gas temp sensor 43D2
Part No HDG32050

View

32053

HDG32053 Fixing plate lambda sensor
Part No HDG32053

View

32055

HDG32055 Fixing lambda sensor
Part No HDG32055

View

32058

HDG32058 Voltage source
Part No HDG32058

View

32061

HDG32061 Flue gas temp. sensor cpl.
Part No HDG32061

View

32064

HDG32064 Buffer temp. sensor PT100 36A4
Part No HDG32064

View

32067

HDG32067 Boiler temp. sensor 43E6
Part No HDG32067

View

32070

HDG32070 Return temp. sensor PT2000 35C1
Part No HDG32070

View

32071

HDG32071 Boiler temp. sensor LC2
Part No HDG32071

View

32072

HDG32072 Buffer temp. sensor PT2000 42E9
Part No HDG32072

View

32076

HDG32076 Cable set cpl.
Part No HDG32076

View

32079

HDG32079 Cable set LC1
Part No HDG32079

View

32080

HDG32080 Connection set LC1
Part No HDG32080

View

32081

HDG32081 Connection set LC2 35E1
Part No HDG32081

View

32082

HDG32082 Control wire 10/11-pole
Part No HDG32082

View

32083

HDG32083 Control wire 15/16-pole
Part No HDG32083

View

32084

HDG32084 CAN Bus cable
Part No HDG32084

View

32085

HDG32085 Control wire 3/5-pole
Part No HDG32085

View

32253

HDG32253 Buffer temp. sensor BSB
Part No HDG32253

View

32263

HDG32263 Extension module 1 mounted 35E2
Part No HDG32263

View

34073

HDG34073 Cable set LC1 plus/ LC2 plus
Part No HDG34073

View

34074

HDG34074 Control unit LC1
Part No HDG34074

View

34077

HDG34077 Immersion sleeve 1-sensor DN 15
Part No HDG34077

View

34128

HDG34128 Control unit LC1
Part No HDG34128

View

34129

HDG34129 Control unit LC1
Part No HDG34129

View

34130

HDG34130 Control unit LC1
Part No HDG34130

View

34142

HDG34142 Control unit HDG LC1 plus
Part No HDG34142

View

34136

HDG34136 Control unit LC2 plus
Part No HDG34136

View

37018

HDG37018 Fuse 6,3A T 5 x 20
Part No HDG37018

View

44193

HDG44193 Immersion sleeve 3-sensor DN 15
Part No HDG44193

View
