Controller & Cladding

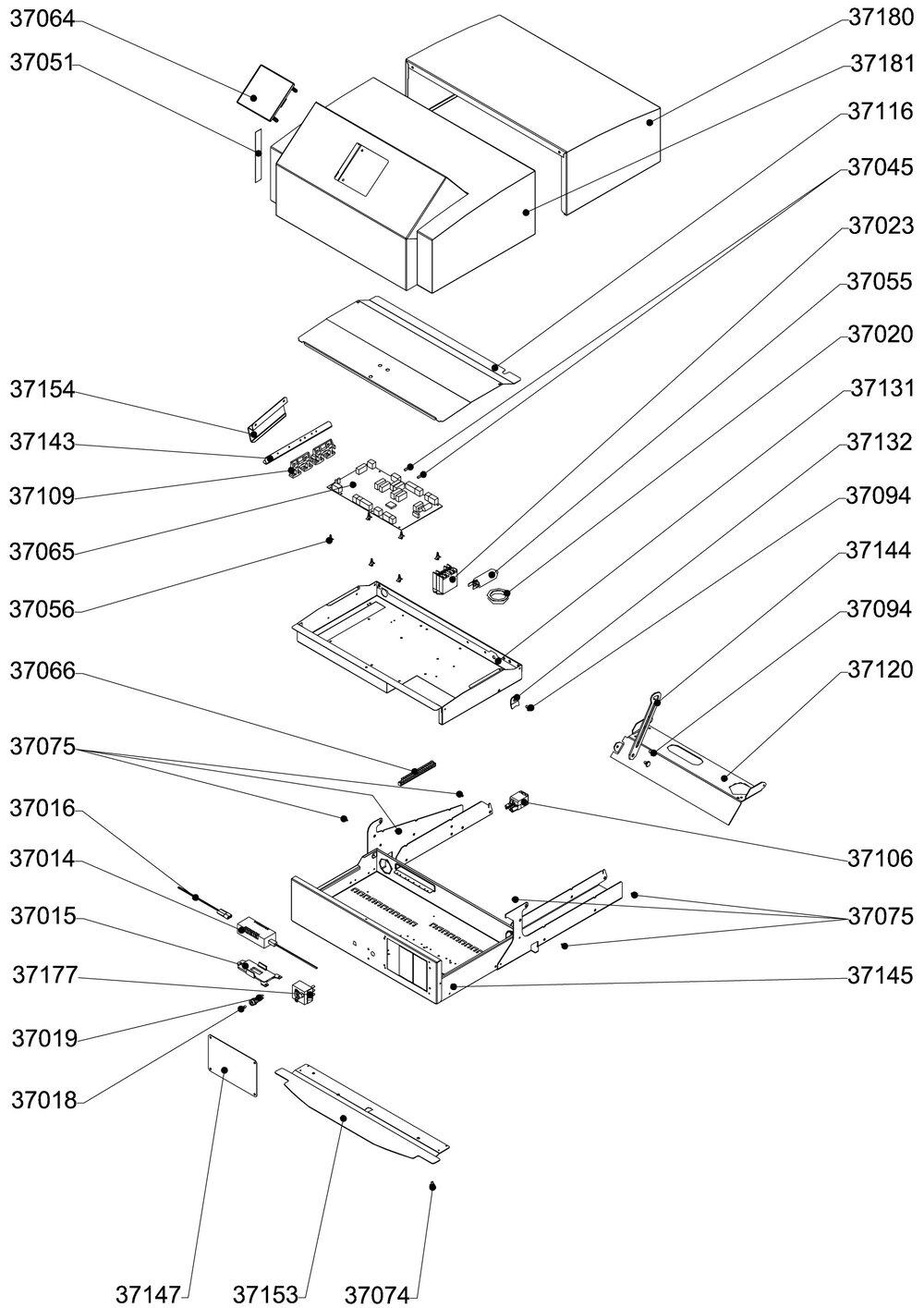

System controller, control PCB and cladding



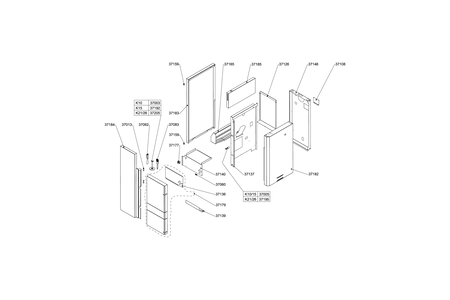

Cladding

37015

HDG37015 Retaining plate power supply
Part No HDG37015

View

37016

HDG37016 Cable for power supply
Part No HDG37016

View

37018

HDG37018 Fuse 6,3A T 5 x 20
Part No HDG37018

View

37019

HDG37019 fuse holder
Part No HDG37019

View

37020

HDG37020 Cable bushing 2400
Part No HDG37020

View

37023

HDG37023 Relay OMRON
Part No HDG37023

View

37029

HDG37029 Woboblock 261 6 pcs.
Part No HDG37029

View

37030

HDG37030 Woboblock 261 8 pcs.
Part No HDG37030

View

37045

HDG37045 Fuse 1A T 5 x 20
Part No HDG37045

View

37051

HDG37051 Velor fabric strips
Part No HDG37051

View

37055

HDG37055 Capacitor 3μF
Part No HDG37055

View

37056

HDG37056 PCB holder
Part No HDG37056

View

37066

HDG37066 Clamping rail MS 8 x 8 mm
Part No HDG37066

View

37067

HDG37067 Woboblock 261 8 pol.
Part No HDG37067

View

37068

HDG37068 Woboblock 261 11 pcs.
Part No HDG37068

View

37074

HDG37074 locking screw
Part No HDG37074

View

37075

HDG37075 Ansatzschraube
Part No HDG37075

View

37094

HDG37094 bolt
Part No HDG37094

View

37100

HDG37100 Woboblock 8 pol. blue / gray
Part No HDG37100

View

37101

HDG37101 Wagoblock 11pol. orange
Part No HDG37101

View

37106

HDG37106 Mains connection socket 3pol.sw
Part No HDG37106

View

37109

HDG37109 Strain relief 4-fold
Part No HDG37109

View

37116

HDG37116 Lid panel
Part No HDG37116

View

37120

HDG37120 Hinge fixed part switch panel
Part No HDG37120

View

37131

HDG37131 Control panel upper part
Part No HDG37131

View

37132

HDG37132 Locking bar control panel
Part No HDG37132

View

37143

HDG37143 Angle strain reliefs
Part No HDG37143

View

37144

HDG37144 Arm fuse switch panel
Part No HDG37144

View

37145

HDG37145 Lower part cubicle
Part No HDG37145

View

37147

HDG37147 blind cover
Part No HDG37147

View

37153

HDG37153 Cover lid front
Part No HDG37153

View

37154

HDG37154 Cable retaining plate
Part No HDG37154

View

37177

HDG37177 Safety thermostat 36B5
Part No HDG37177

View

37180

HDG37180 Cover back
Part No HDG37180

View

37181

HDG37181 Cover front cpl.
Part No HDG37181

View

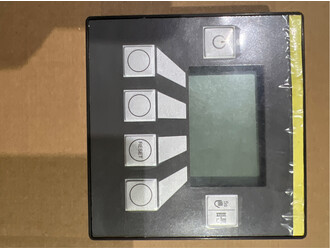

37256

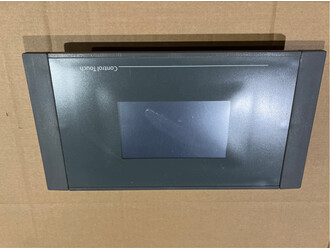

HDG37256 Control unit Control Touch
Part No HDG37256

View

37265

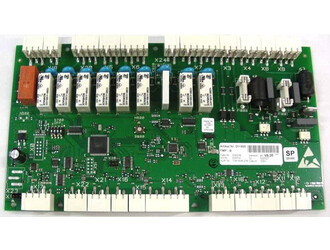

HDG37265 Circuit board
Part No HDG37265

View

37266

HDG37266 Display Board
Part No HDG37266

View

37267

HDG37267 power adapter
Part No HDG37267

View

37270

HDG37270 Control unit Control Touch XL
Part No HDG37270

View

37271

HDG37271 Cover front complete
Part No HDG37271

View
