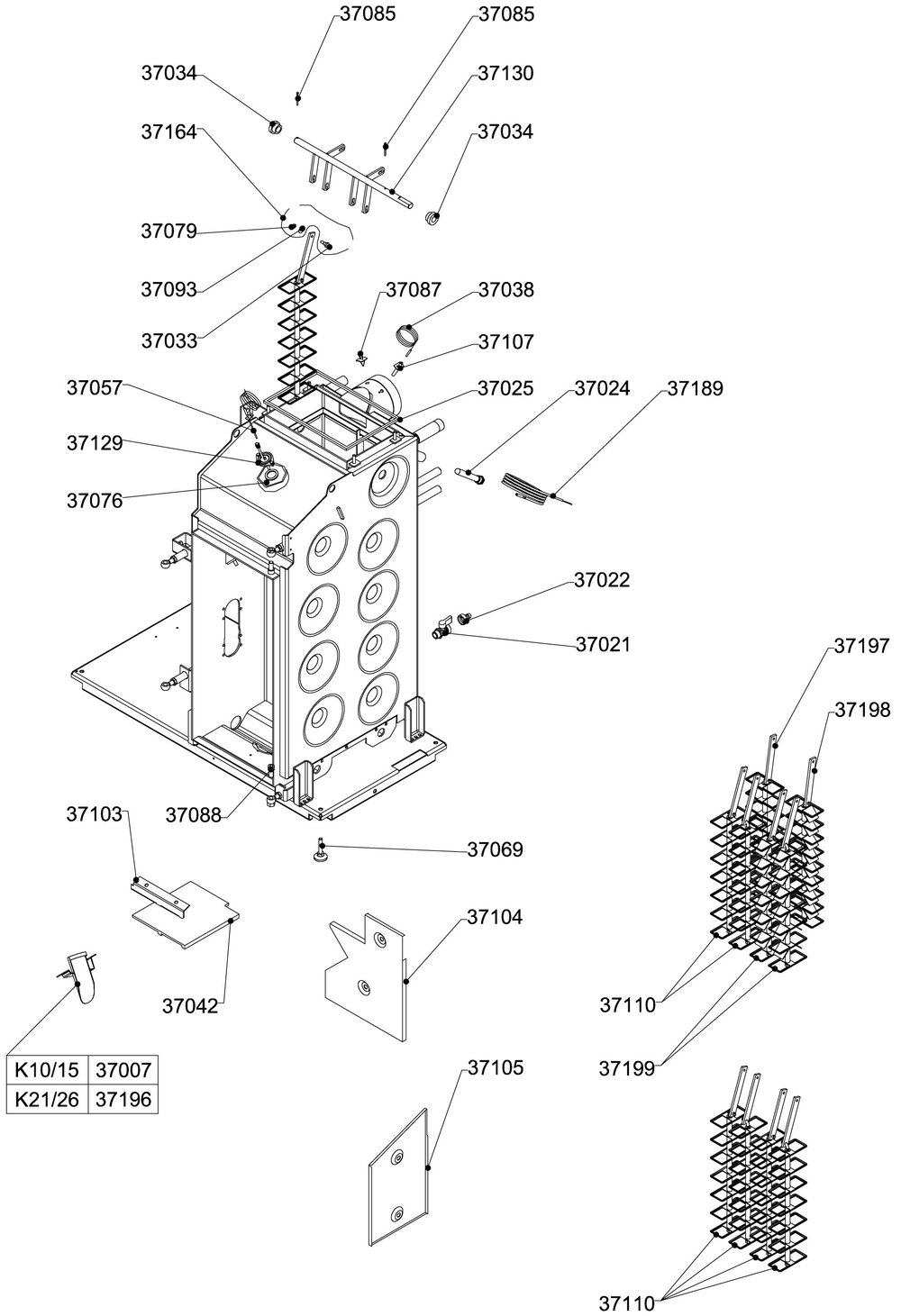

Boiler Body

HDG37007

37007 Gully for pellets
Part No HDG37007

HDG37021

37021 KFE ball valve 1/2 "
Part No HDG37021

HDG37022

37022 Hose nozzle, union nut
Part No HDG37022

HDG37024

37024 Immersion sleeve (129 mm)
Part No HDG37024

HDG37025

37025 U-profile silicone
Part No HDG37025

HDG37033

37033 Screw M6
Part No HDG37033

HDG37034

37034 camp
Part No HDG37034

HDG37038

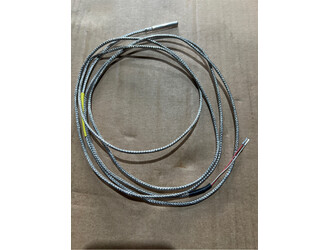

37038 PT1000 Flue Gas Sensor 35D9
Part No HDG37038

HDG37042

37042 baffle
Part No HDG37042

HDG37057

37057 Combustion chamber temperature sensor
Part No HDG37057

HDG37069

37069 Adjustable foot M10 x 40 mm
Part No HDG37069

HDG37076

37076 Gasket flange BRT sensor
Part No HDG37076

HDG37079

37079 Nut DIN 934 - M6 - A2
Part No HDG37079

HDG37085

37085 cotter
Part No HDG37085

HDG37087

37087 Meßlochverschluss
Part No HDG37087

HDG37088

37088 cylinder head screw
Part No HDG37088

HDG37093

37093 Washer M6
Part No HDG37093

HDG37103

37103 support rail
Part No HDG37103

HDG37104

37104 Cover plate at the back
Part No HDG37104

HDG37105

37105 Cover plate on the right
Part No HDG37105

HDG37107

37107 Thermowell exhaust gas sensor
Part No HDG37107

HDG37110

37110 Cleaning strip cpl.
Part No HDG37110

HDG37129

37129 Flange comb.ch. temp.sensor
Part No HDG37129

HDG37130

37130 Axis cleaning system
Part No HDG37130

HDG37164

37164 Connection M6
Part No HDG37164

HDG37189

37189 Immersion sensor (boiler temp)
Part No HDG37189

HDG37196

37196 Drop chute
Part No HDG37196

HDG37197

37197 Clearer flat downdraft back
Part No HDG37197

HDG37198

37198 Clearer flat updraft back
Part No HDG37198

HDG37199

37199 Clearer flat updraft front
Part No HDG37199
