The HDG Touch screen boiler and system controller.
The HDG Touch Control is at the front of the entire control strategy for the F Series, Euro, Compact 25-80, K 10-25 and standalone heating controllers.
Connected via MODBUS to boiler specific control modules it receives information from all sensors and controls outputs to all electrical components in the boilers.

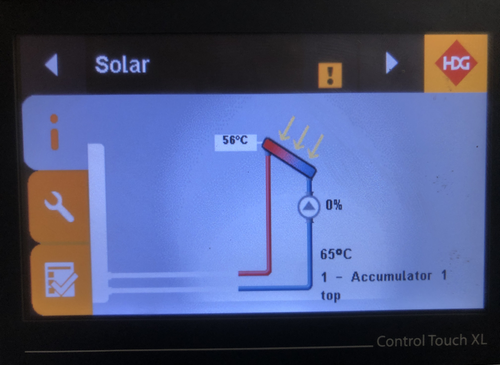

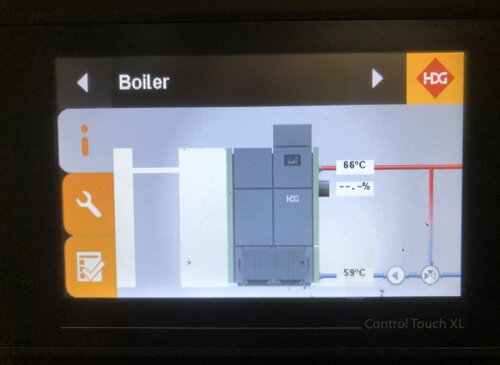

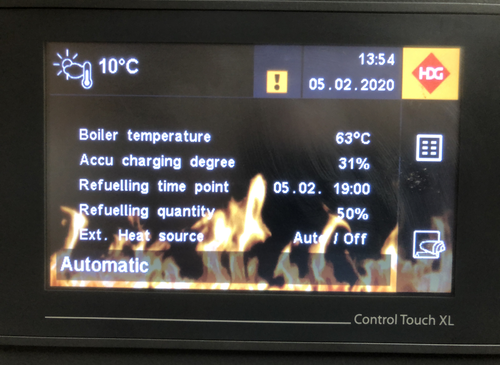

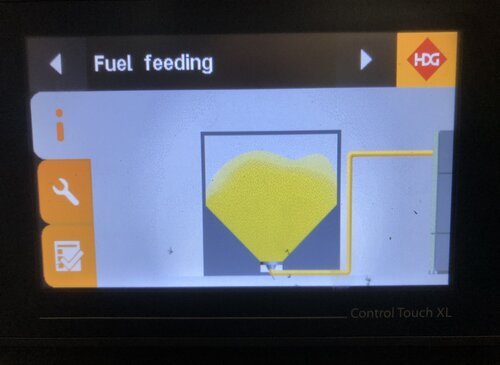

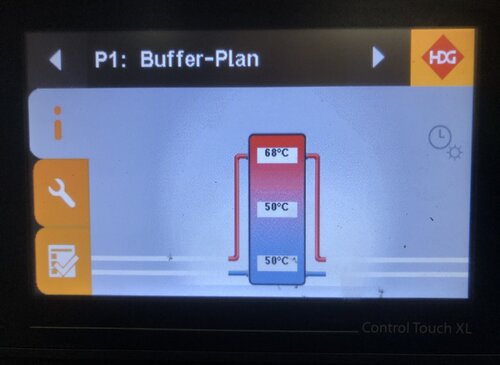

The result is a clear and concise interface which displays and controls all functions including the fuel feed, combustion, power regulation of motors, automatic cleaning, ash removal, accumulator management and if installed heating distribution and solar thermal.

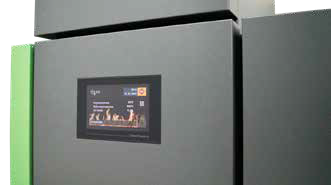

The standard 4.3” industrial quality touch screen is designed to work in boiler room conditions, in low light levels and a dusty environment, and can even be used while wearing gloves, unlike standard touch controls.
Control all boiler and heating operations from a simple easy to use touch screen.
General Features include
- Time control heating circuits
- Temperature control of heating circuits.

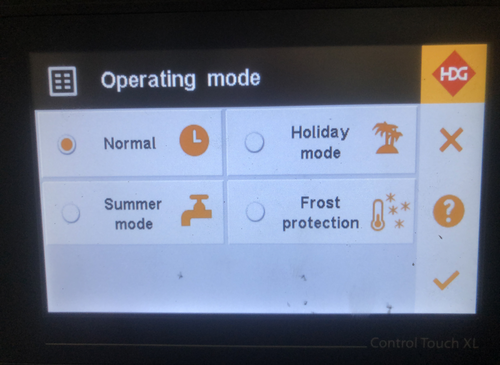

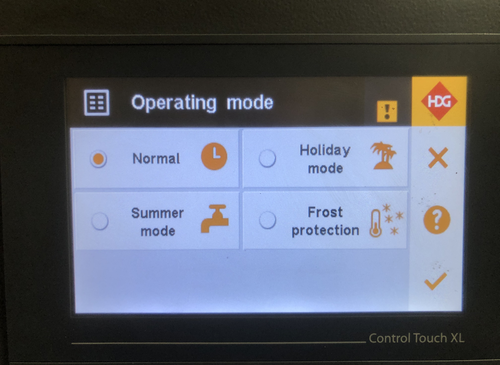

- Automatically switch off heating in warm weather

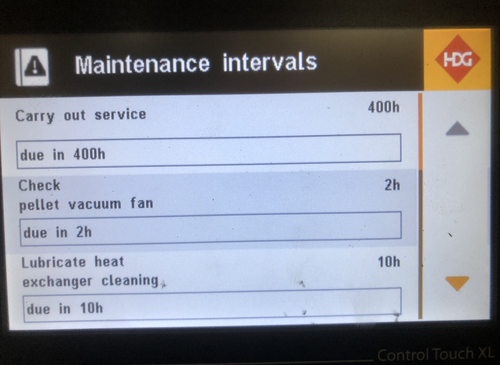

- Email messages about maintenance issues
- SMS messages about maintenance issues
Log Boilers.
- Automatic ignition of logs base on demand and weather condtions.
- Email or SMS when log boiler due for reloading
Automatic boilers
- Email or SMS when boiler due for deashing.
- Email or SMS to advise when fuel should be ordered
HDG Touch Control XL
The optional large touch screen offers additional features such as data logging and web access as well as a 7” 800 x 480 pixel industrial quality screen. The integrated webserver allows access to the boiler and heating controls from mobiles, tablet’s, computers etc.
or mobile phones from anywhere with web access. The webserver comes ready to run, connect to a local network with internet access.
The webserver will connect automatically to the HDG dedicated server on the internet. The user needs to register. This allows access from any internet device.
TouchScreen
- Industrial quality for long life.
- 4" or 7" screen sizes
- Simple and easy to use
- Email and sms messaging
