Pellet Boilers for heating and hot water

Wood pellet boilers operate similarly to fossil fuel boilers. When heat is needed, they automatically ignite, feed fuel to the fire, and shut off as necessary. This automation makes them an excellent alternative for those seeking a cost-effective and environmentally friendly option compared to traditional oil, LPG, or electric heating, all while ensuring high comfort levels. They are suitable for a range of applications, from small domestic properties to large commercial facilities.

When choosing a wood pellet boiler, it’s important to consider several key factors:

Fuel Storage: Ensure you have adequate space for storing wood pellets, as this will impact your boiler’s efficiency and ease of use.
Energy Storage: Consider options for storing excess heat, such as an accumulator tank, to enhance efficiency and provide hot water on demand.
Control Systems: Look for advanced control systems that allow for precise temperature regulation and automated operation, ensuring optimal performance and convenience.

Benefits of a pellet burning boiler;

Simple to operate
Fully automatic control and feed systems
Automatic ignition and cleaning
Eligible for both the Domestic and Non-Domestic Renewable Heat Incentive Schemes
High density wood pellet requires less storage space than other forms of biomass
Significant fuel savings over oil, LPG and electricity
Lambda controllers ensure high real-life efficiencies up to 93%
Designed for long operational life
Integrated weather compensation

Small domestic and light commercial

K Series Mk2

The K Series Mk2 range of pellet boilers are ideally suited to domestic properties or light commercial. Purpose designed for simple and easy operation both when fuelling with wood pellets or removing ash. As a guide the K Series Mk2 pellet boilers might suit:

K10 Very well insulated modern house 2-3 bedrooms or more if of passive type construction. Older 1-2 bedroom property.

K15 Very well insulated modern house 3-4 bedrooms or more if passive type construction. Older 2-3 bedroom property.

K21 Well insulated 3-5 bedroom property. Poor insulated 2-3 bedroom. Small low energy commercial application such as high street shop.

K26 Well insulated 4-6 bedroom house. Poor insulated 3-4 bedroom. Small low energy commercial, larger shop or small warehouse.

Compact 25-50 range

Commercially constructed pellet boiler for domestic applications As a guide the Compact 25-50 range of pellet boilers might suit:

Compact 25 Well insulated 4-6 bedroom house with larger than average hot water demand and/or swimming pool. Small to medium commercial application.

Compact 35 as Compact 55, though larger all round application.

Compact 45 and 50 Medium to large country property or large urban house. Small school or rest home, manufacturing process with heat requirement or space heating.

Larger domestic , commercial & industrial

Compact 65-80 range

Commercially constructed pellet boiler designed for domestic and commercial applications. As a guide the Compact 65-80 range of pellet boilers are ideally suited for:

Compact 65 Medium to large country property or large urban house. Small school, rest home, manufacturing process with heat requirement or space heating.

Compact 80 Large country property or large urban house. Medium rural primary school, rest home, manufacturing process with heat requirement or space heating.

Compact 100-200

Commercially constructed pellet boiler for heavy load applications with continuous long operation periods or regular stop and start applications.
As a guide the Compact 100-200 range of pellet boilers are ideally suited for:

Large country or urban houses. Medium to large hotels, rest homes and medical care. Large shop or showroom properties, such car, supermarket, shopping centres or out of town stores. Process applications such as wood fuel drying, food, animal, chicken production.

M Series 175-400

Industrially designed and built wood chip boiler for heavy work loads with nominal working hours of 4,000 hours per year.
As a guide the M Series range of wood chip boilers might suit:
Schools, large country estates. Medium to larger hotels, larger rest homes and medical care establishments.

Larger shopping centres or showroom properties, such car, supermarket, shopping centres and out of town stores.
Process applications such as wood fuel drying, food, animal, chicken production.

District heating of housing estates, industrial complexes, etc.

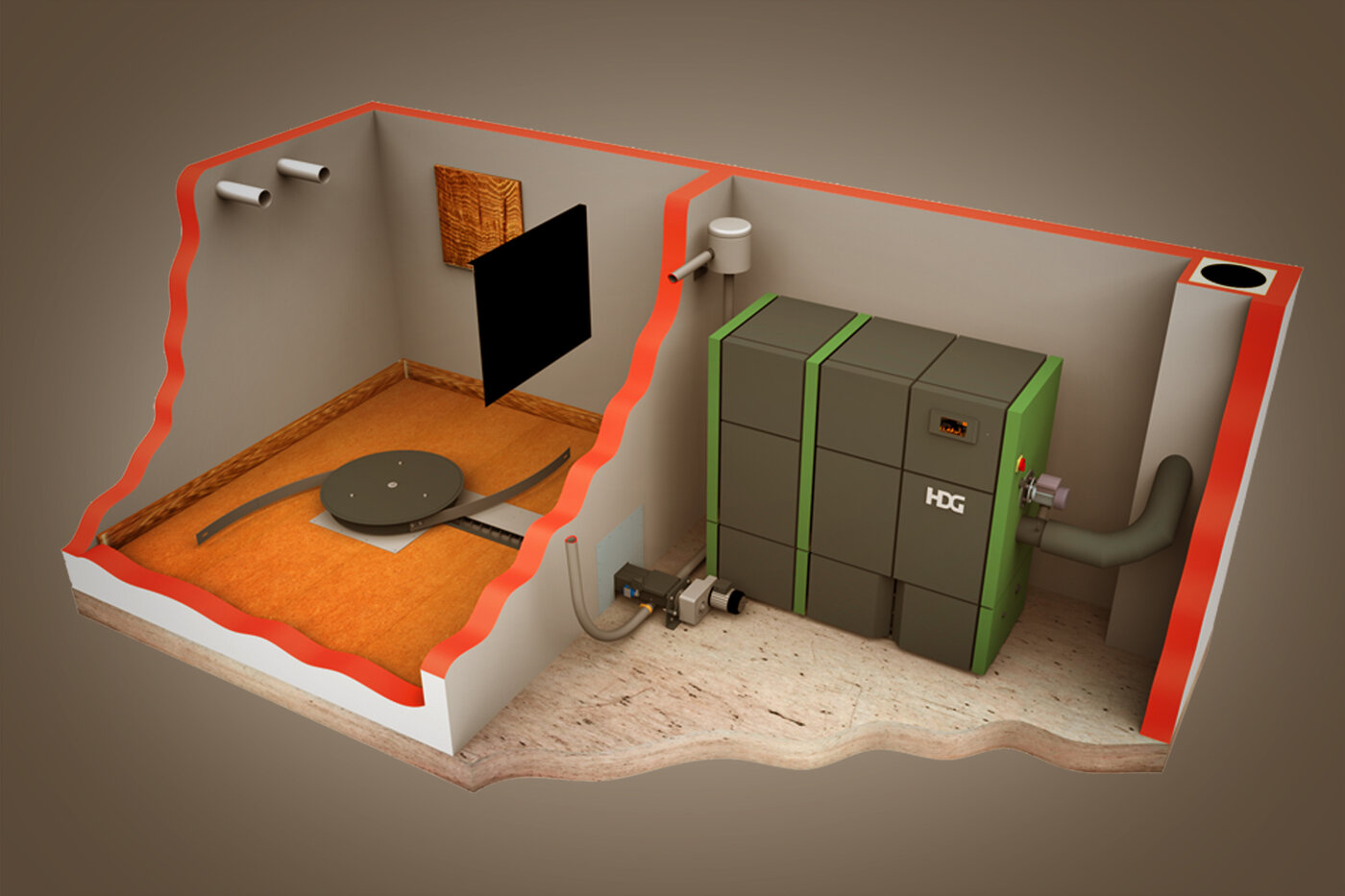

Pellet Storage

Pellet storage can either be incorporated locally within the boiler, or via a bulk pellet store that is either augered or vacuum transferred to the boiler. Pellets are available in pre-packed bags (normally 15 kg) for ease of handling and convenience, or bulk delivered for those looking for extended periods between refuelling and optimum buying price.

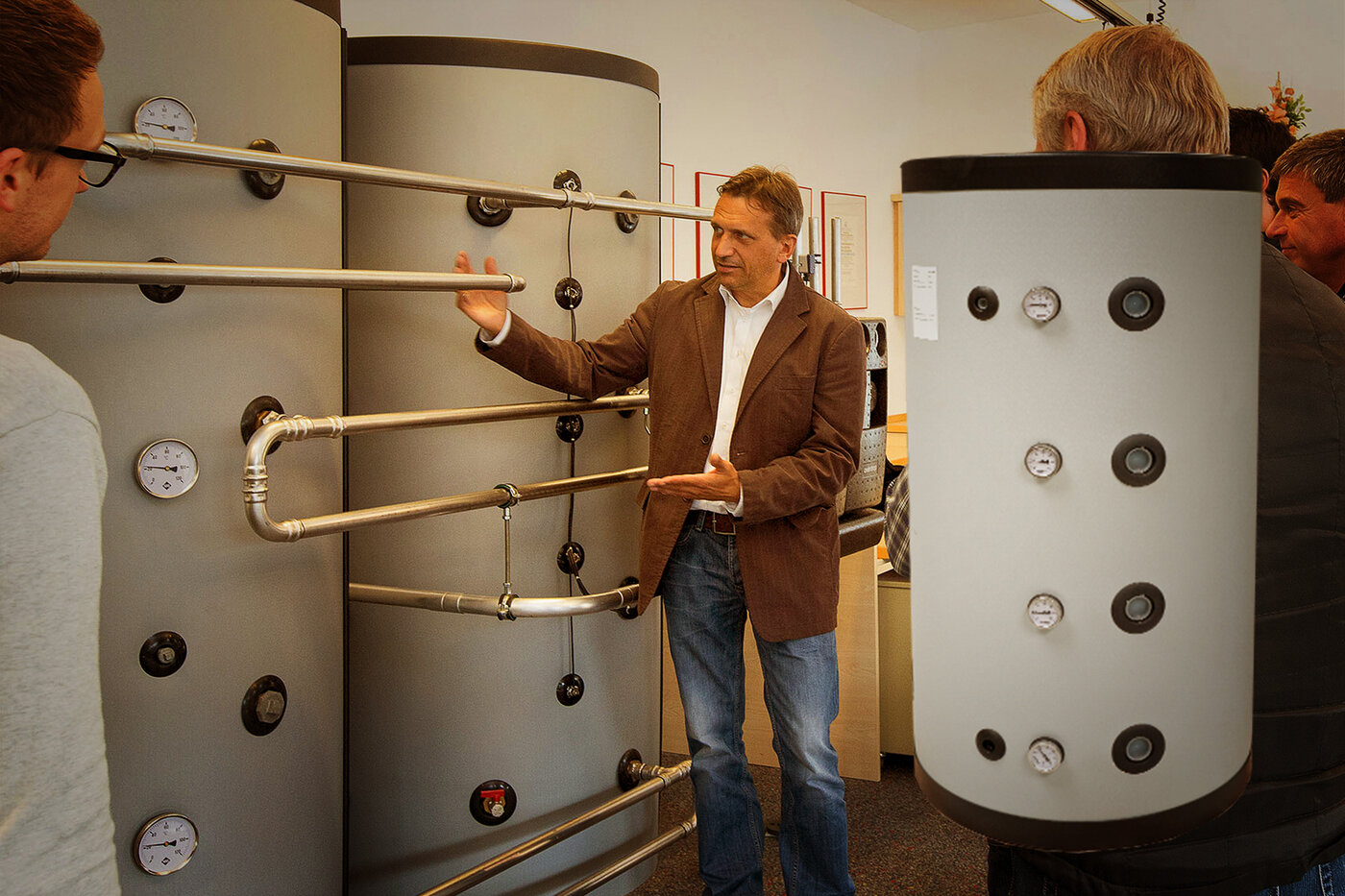

Buffer Tanks/Thermal Stores

Buffer tanks, or thermal stores, are crucial for the efficient operation of all biomass boilers The benefits gained from using an accumulator are substantial. Not only do they reduce fuel consumption they allow accumulated energy to be available immediately, there is no need to light the boiler. This reduces emissions and increases the life span of the boiler. In addition the buffer tank or thermal store allow multiple heat sources to be linked as well as offering your central heating system access to heated hot water

Combustion Control

As with all high efficiency biomass boilers, pellet boilers require clever electronic controllers to ensure the highest efficiencies possible. Typically, pellets are ignited in a combustion chamber where the volatile gases are driven off and gassified by adding secondary air. The controller ensures the precise mix of fuel, primary air, and secondary air at all stages of combustion.

Perfectly regulated with the HDG Control

The new HDG Control is the intelligent control centre for your entire heating system. Whether on the large touchscreen on the boiler or via the app: With HDG Control, you always have absolute control over your heating system.

Control of combustion and output
Control of external heat sources
Integration of solar thermal systems, accumulators, heating circuits, mains pumps
Domestic hot water preparation, etc.
On request: Full web access and app for iOS and Android

SEE THE DEMO REMOTE HDG Control

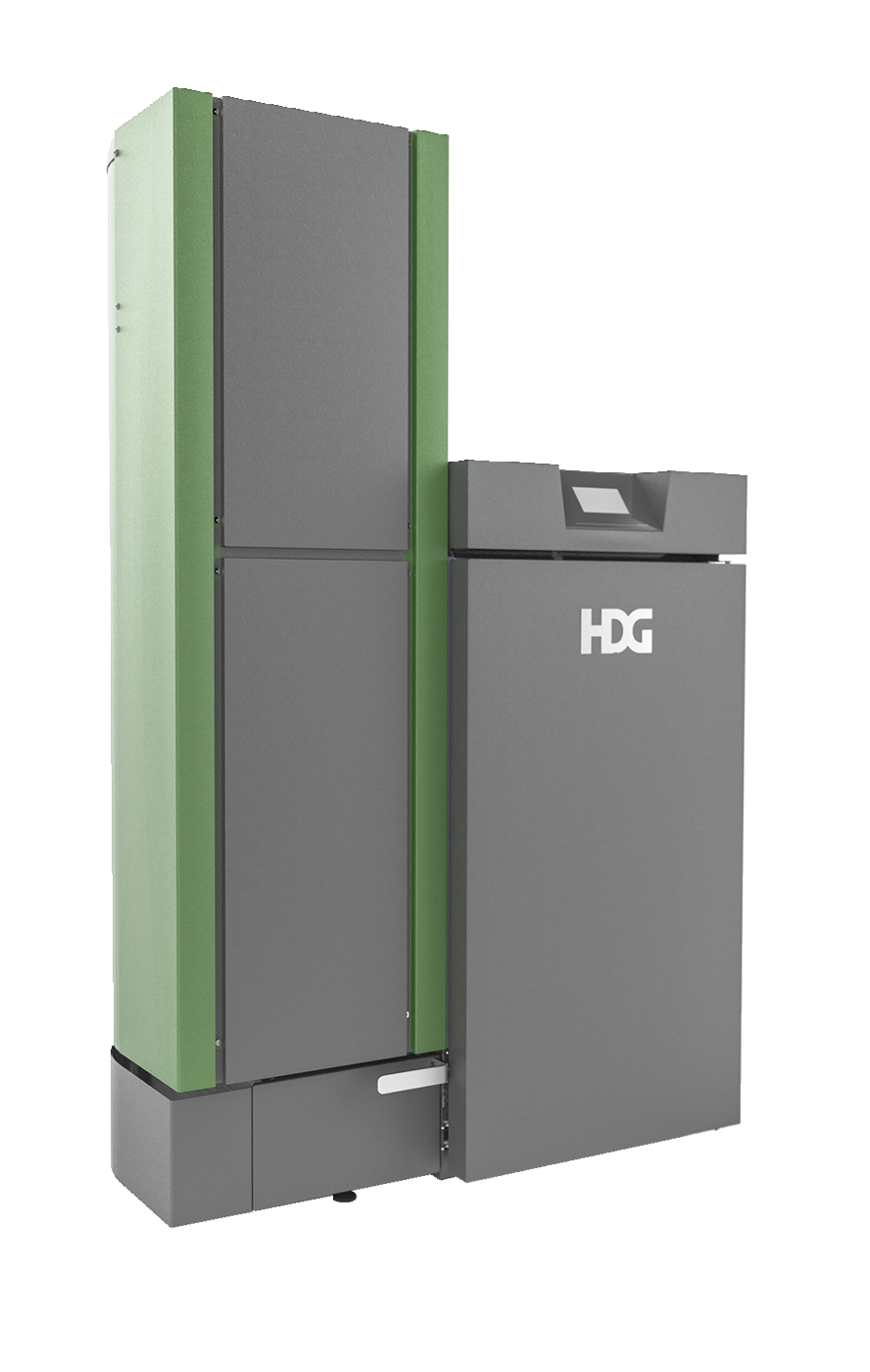

Smaller & Medium Homes

The small K series 10-33kW is ideal for the smaller home or business is distinguished by its especially compact design. Integrated fuel storage or vacuum delivery from a bulk storage facility. 7" touch screen with remote access from mobile, computer and i-pad.

Larger Homes & Commercial

HDG's 35-60kW mid-sized pellet boiler range. Ideal for the larger home or business due to its relatively compact design. Integrated fuel storage or vacuum delivery from a bulk storage facility. The option of 7" touch screen with remote access from mobile, PC, laptop and i-pad.

Commercial & Large Homes

HDG Compact 40-95 kW pellet boiler range. Highly efficient and cost-effective boiler range. Suitable for the large domestic house or demanding commercial application left or right-hand versions with vacuum or direct auger fuel delivery systems.
